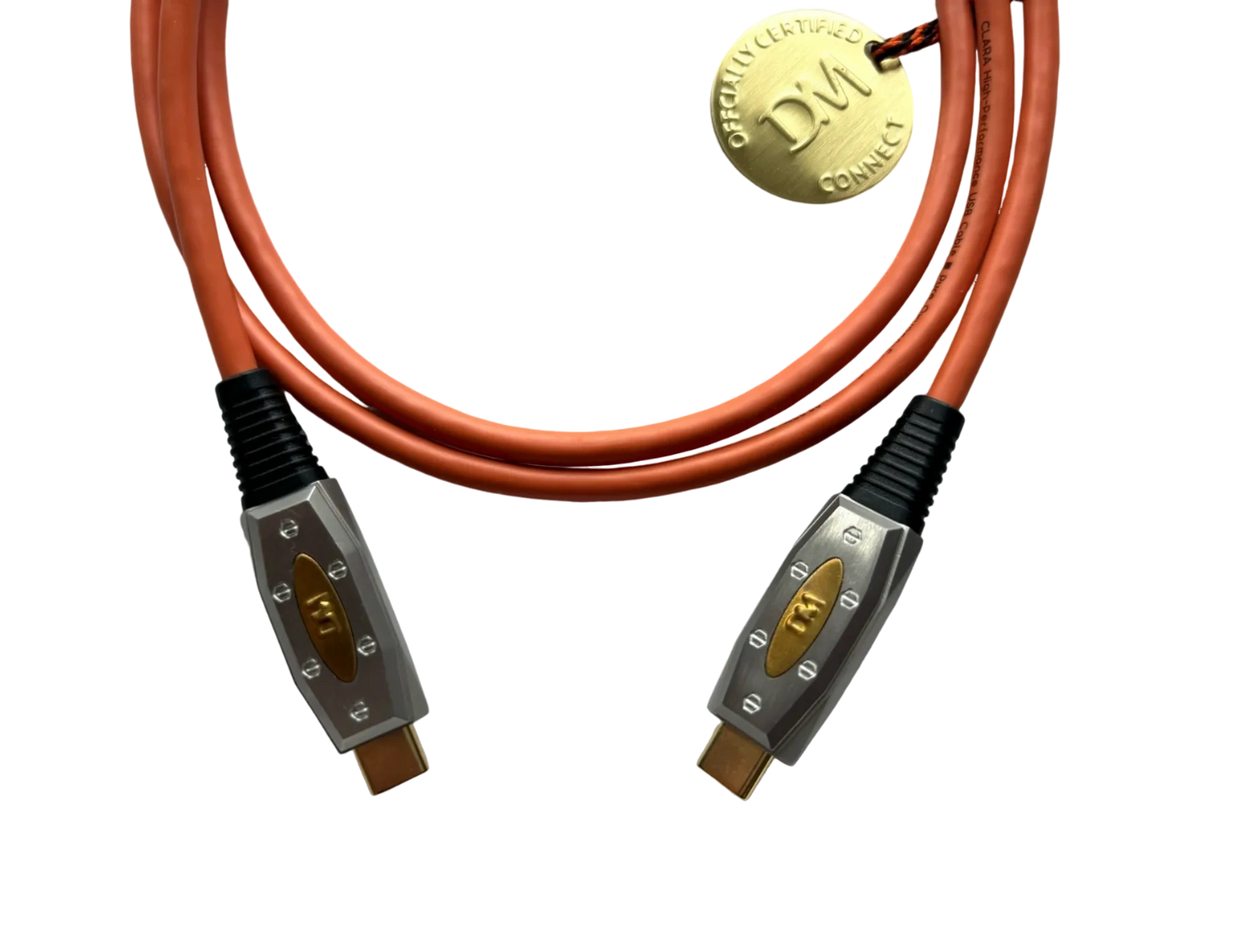

CLARA USB-C TO USB-C

The manufacturing process of our CLARA series is extremely meticulous:

Detailed Cutting Process: Each side requires more than 8 knives to cut, and each side is precisely processed for 12 minutes, resulting in a total of 32 cut sides. This meticulous attention to detail ensures precision and quality in every aspect of our manufacturing process.

Through our commitment to precision, advanced technology, and high-performance standards, we deliver cables that offer exceptional performance, reliability, and quality.

and then the finished cables are cut to the exact required lengths using precision machines. This ensures consistency and accuracy in every cable we produce.

Exact Jacket Stripping: The jackets are stripped to the ideal lengths with meticulous precision. This step is critical for ensuring optimal connectivity and performance.

Laser Termination: For USB cables, the termination process is executed with lasers to achieve the necessary precision. This high-tech approach ensures that our cables can support data transfer speeds of up to 10 billion data bits per second, meeting the demands of high-speed data applications.

Specifications：

1. Rated Voltage:30V
2. Rated Temperature:80°C

3. Conductor Resistance:

      30AWG-381Ω/KM Max at.20°C

      24AWG-94.2Ω/KM Max at.20°C

4. Insulation Resistance:

     DC-500V  100MΩ.KM MIN at 20°C

5. Dielectric Strength:

     AC-500V/1min, No Breakdown
6. Differential Impedance:90±7Ω
7. Bending test:Load300g,±60°,R=25.4mm,

     30Cycles/min,3000Cycles
8. Environmental Conservation:

     RoHS，REACH
